MKDocs setup

Install Python 3

  • install newest 64 bit python for windows, be sure to check add python to path we used 3.10.2 64 bit (Feb.2022) python.org
  • check if python is in path variable
  • if not try to logout and login, or restart
  • if this doesn't help add your Python path to Path variable

Install Git

Install latest git

  • use default settings

Install Tortoisegit

Install latest tortoise git

  • use default settings

Register

Register here

  • only accessible via company network

Setup SSH key

  • for setup right click on desktop and "Git Bash Here" and after entering SSH keygen command select "no passphrase"

Add SSH key to user settings

Add key here

  • name the key

Connect to WiFi

Warning, company network problem

You can't use python pip on company network because repositories are blocked by firewall.

  • disable ethernet connection to Muehlbauer network
  • enable wifi and connect to MBGUEST
  • try connecting to any webpage until you get Kaspersky warning, disable it's warnings for 30 mins until we complete mkdocs installation.

Install MKDocs

Run commands in powershell

Now we install mkdocs self hosted server that uses python:

python -m pip install mkdocs

This will install a nice theme:

python -m pip install mkdocs-material

Warning

Git repo account and SSH key is needed in order to clone and change the documentation.

And now we clone our documentation project:

cd %UserProfile%
git clone git@172.18.48.255:Documentation/RoseRT_Documentation.git

Confirm with "yes".

Note

Inside this repository, there are documentations Markdown files including the one you're reading right now. Also there is configuration and script to run server on your local machine. You will commit your changes of docs to this repo.

Run server and start editing

Open this directory and double click on runserver.bat

%UserProfile%\RoseRT_Documentation\

Note

runserver.bat script works properly only if repo is cloned into your user directory: C:\Users\YourUserName\RoseRT_Documentation

Open this local URL in your web browser:

http://127.0.0.1:8000/

Success

Congratulations, you can start contributing to documentation.

For editing use Visual Studio Code from which you can directly commit and push files to the repository

Downloading and uploading files

to get the latest version use:

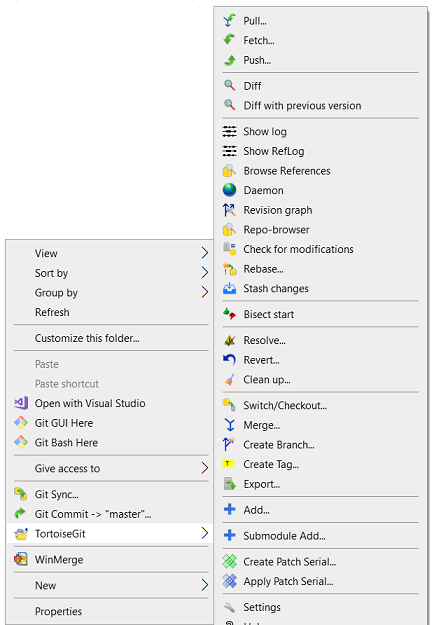

  • Graphical interface of TortoiseGIT:

Screenshot

or

  • GIT command window

Commands

download objects to the local machine without overwriting existing local code in the current branch

git fetch

downloads all objects to the local machine in the current branch

git pull

upload local repository content to a remote repository

git push
