Incarnate

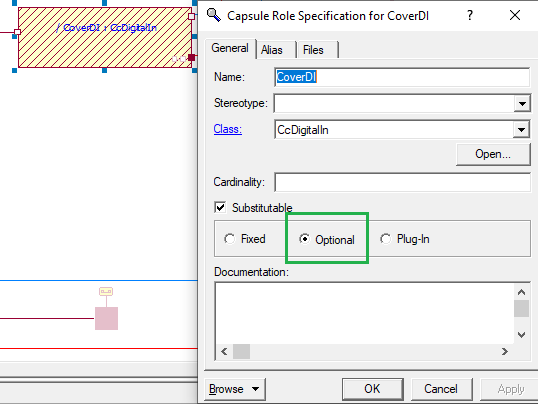

Set component to optional

Component won't incarnate automatically. If you want to use it you need to call incarnate.

---

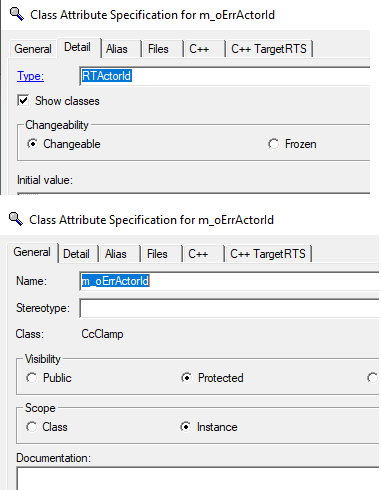

Create attributes for incarnate

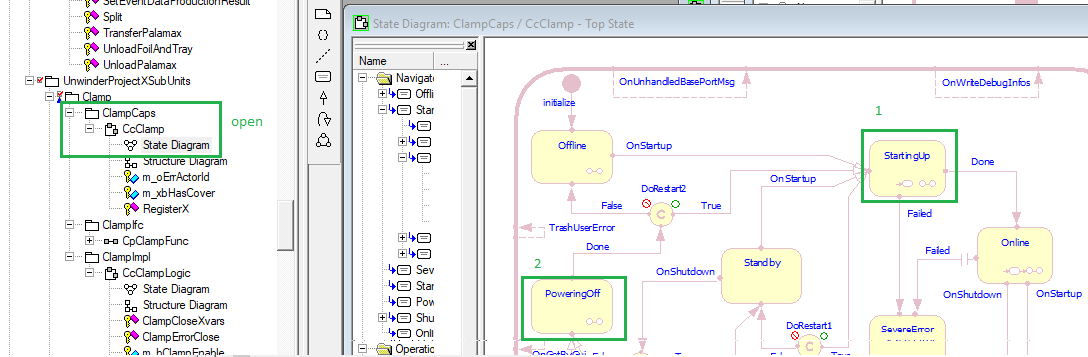

Open < Name >Caps -> State Diagram

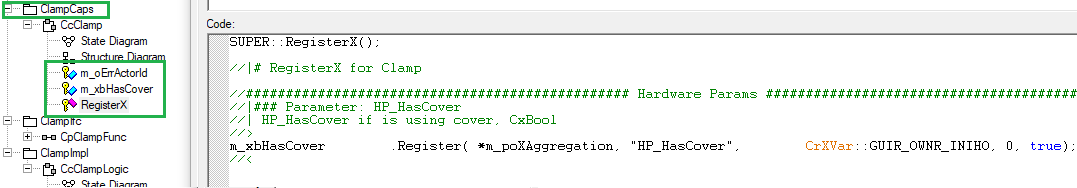

Now create RegisterX and Attribute inside < Name >Caps -> Cc< Name > according to the pictures

create RegisterX

SUPER::RegisterX();

//################################################ Hardware Params ###########################################
//|### Parameter: HP_HasCover
//| HP_HasCover if is using cover, CxBool
//>
m_xbHasCover        .Register( *m_poXAggregation, "HP_HasCover",        CrXVar::GUIR_OWNR_INIHO, 0, true);
//<

Set Attribute m_xbHasCover in hardware.ini if you want incarnate.

---

Add incarnate

Open in: < Name >Caps -> State Diagram

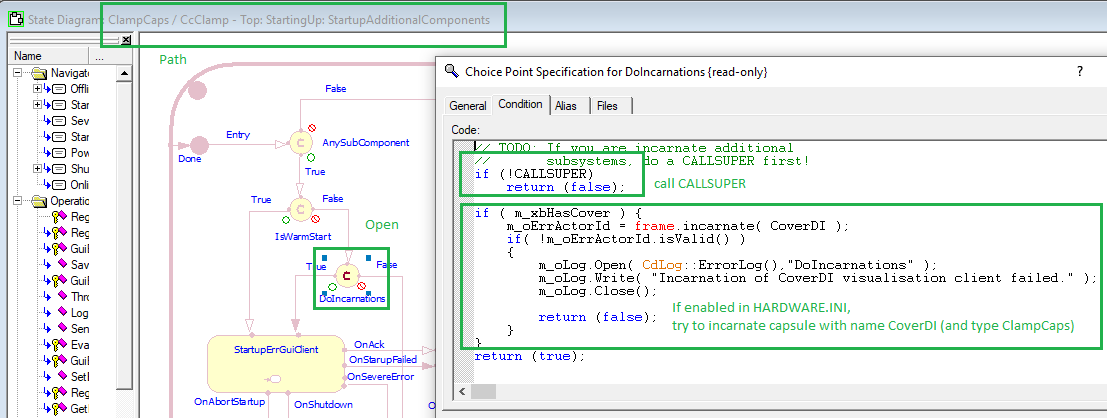

After StartingUp -> StartupAddtionalComponents -> and open choose point accorting to the picture

if you write here you must call "CALLSUPER"

call CALLSUPER

if (!CALLSUPER)
    return (false);

Edit your component and attribute name: m_xbHasCover and CoverDI

if ( m_xbHasCover ) {
    m_oErrActorId = frame.incarnate( CoverDI );
    if( !m_oErrActorId.isValid() )
    {
        m_oLog.Open( CdLog::ErrorLog(),"DoIncarnations" );
        m_oLog.Write( "Incarnation of CoverDI visualisation client failed." );
        m_oLog.Close();

        return (false);
    }
}

If you have multiple incarnates:

• create define example:

  #define UNWINDER_PLOTER_CUTTER_COUNT_INCARNATE  2


• change type object m_oErrActorId to:

  RTActorId[UNWINDER_PLOTER_CUTTER_COUNT_INCARNATE]


• and use for incarnate this code:

Edit your component and attribute name: m_xbHasDMCStaticScaner, m_xbHasBrushBeltDrive and DMCStaticReader, BrushBeltDrive

int counter = 0;
/*------------------ option 1 (different component types) -------------------------*/
if ( m_xbHasDMCStaticScaner ) {
    m_oErrActorId[counter] = frame.incarnate( DMCStaticReader );
    if( !m_oErrActorId[counter++].isValid() )
    {
        m_oLog.Open( CdLog::ErrorLog(),"DoIncarnations" );
        m_oLog.Write( "Incarnation of DMCStaticReader visualisation client failed." );
        m_oLog.Close();

        return (false);
    }
}

if ( m_xbHasBrushBeltDrive ) {
    m_oErrActorId[counter] = frame.incarnate( BrushBeltDrive );
    if( !m_oErrActorId[counter++].isValid() )
    {
        m_oLog.Open( CdLog::ErrorLog(),"DoIncarnations" );
        m_oLog.Write( "Incarnation of BrushBeltDrive visualisation client failed." );
        m_oLog.Close();

        return (false);
    }
}
/*------------------ option 2 (same component type) -------------------------*/
if ( m_xbHasDMCStaticScaner ) {
    for( int i = 0; i < DMC_SCANNER_COUNT; i++){
        m_oErrActorId[counter] = frame.incarnate( DMCStaticReader );
        if( !m_oErrActorId[counter++].isValid() )
        {
                        m_oLog.Open( CdLog::ErrorLog(),"DoIncarnations" );
                        m_oLog.Write( "Incarnation of DMCStaticReader visualisation client failed." );
                        m_oLog.Close();

                        return (false);
        }
    }
}
...

var counter continues with value of all incarneted components + 1

---

Destroy object

Now you must destroy object at finish

Open in: < Name >Caps -> State Diagram

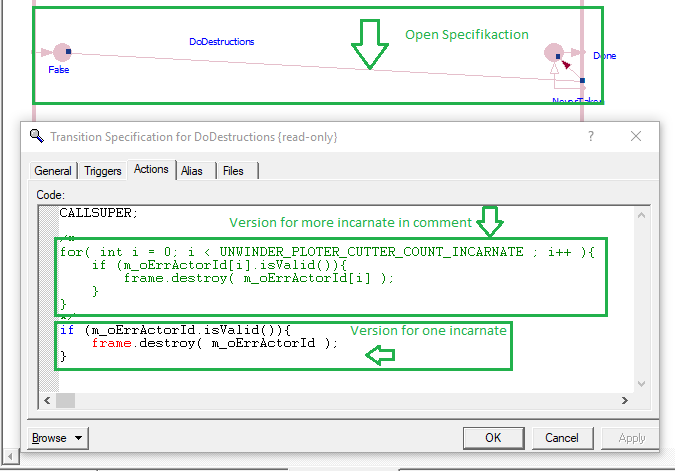

After open path: StartingUp -> PoweringOff -> trigger DoDestructions

Edit your define: UNWINDER_PLOTER_CUTTER_COUNT_INCARNAT

CALLSUPER;
/*----------- option 1 (more safe) ----------------*/
for( int i = 0; i < UNWINDER_PLOTER_CUTTER_COUNT_INCARNATE ; i++ ){
    if (m_oErrActorId[i].isValid()){
        frame.destroy( m_oErrActorId[i] );
    }
}

/*----------- option 2 (dynamically checks cardinality of component) ----------------*/
for( int i = 0; i < Heating.size(); i++ ){
    if (m_oHeatingControllerActorId[i].isValid()){
        frame.destroy( m_oHeatingControllerActorId[i] );
    }
}

If you have only one incarnation you can use this code:

Tip

CALLSUPER;

if (m_oErrActorId.isValid()){
    frame.destroy( m_oErrActorId );
}

---

Use inside < Name >Logic

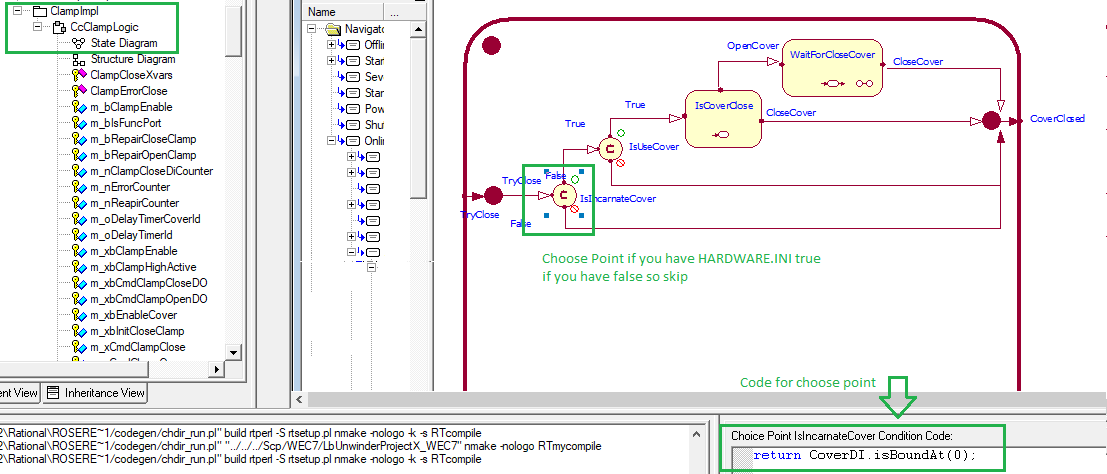

Create a choice point and write:

Edit your component: CoverDI

return CoverDI.isBoundAt(0);

Note

By calling < component >.size() you can get cardinality of the component

By calling < component >.isBoundAt(< number >) you can get number of incarnated components (objects)

If is HARDWARE.INI attribute true so execute your code

If is HARDWARE.INI attribute false so skip your code

---

Remove EmptySlot0 from path

If you have issue with incarnated path of subunits adding EmptySlot0, additional code must be added to initialize transition of said subunit.

Note

Incarnated path:

MachineName_EmptySlot0_SubunitName

Instead of expected:

MachineName_SubunitName

Edit your transition: initialize

CALLSUPER;

m_sIncarnationName.Empty();

// needs the value m_sIncarnationName from the m_oInitData
if ( rtdata )
{
    m_sIncarnationName = *((CdString*)rtdata);      // (received incarnation parameter)
    CrAssertExLog(!m_sIncarnationName.IsEmpty());
    m_bIncarnationNameIsSetManually = true;
}

// find out RoleName of Capsule
m_sSubstCapsuleRoleName = GetLongNameOfCapsule();

// set log caption

m_oLog.SetContainerName( m_sSubstCapsuleRoleName );

// set pointer to global data

m_oPubAttr4Innards.AddAttr( this, m_oLog, "Log" );
m_oPubAttr4Innards.AddAttr( this, (CrTV)m_sSubstCapsuleRoleName, "SubstCapsuleRoleName" );
m_oPubAttr4Innards.AddAttr( this, (CrTV)m_sDescription, "Description" );

---
