BeckhoffBSD Setup
Find out the machine's IP address:

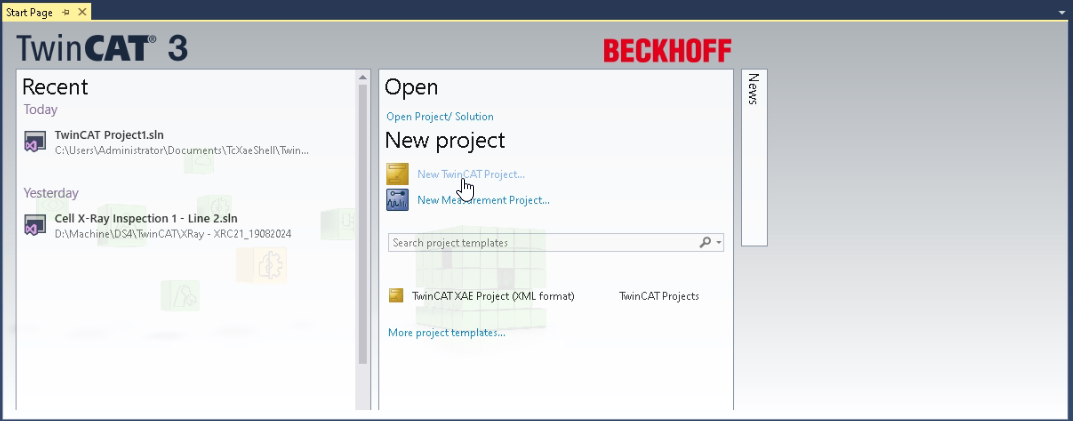

- Open Twincat XAE and create new solution
- Double click SYSTEM tab in solution explorer
- Press
Choose Target, then pressSearch (Ethernet) - In the newly opened window press
Broadcast Search - Select all adapters and press OK
- Look for a device, whose OS is TwinCat BSD.
Note
In case multiple such machines are found you can try connecting to them through putty/ssh and rebooting them. If the TC LED on the physical beckhoff machine stops glowing, that's your machine. If it doesnt, try different one.
Change rc.conf
- Connect to the Machine either through Putty or Powershell SSH.
Note
Hostname: Administrator@[IP ADDRESS]
-
Example of SSH used through Powershell:
-
Example of Putty:
-
Once successfully connected, edit the rc.conf file using the following command:
doas ee /etc/rc.conf
Copy and paste the following config:
zfs_enable="YES"
dumpdev="AUTO"
CXID_enable="YES"
MDPService_enable="YES"
ntpd_enable="YES"
pf_enable="NO"
sshd_enable="YES"
TcSystemService_enable="YES"
runonce_enable="YES"
sendmail_enable="NO"
sendmail_submit_enable="NO"
sendmail_outbound_enable="NO"
sendmail_msp_queue_enable="NO"
dhcpcd_enable="NO"
ifconfig_igb1="inet 192.168.201.2 netmask 255.255.255.224"
ifconfig_igb1_alias0="inet 192.168.104.69 netmask 255.255.255.0"
dhcpcd_flags="--waitip --denyinterfaces igb0,igb1"
allscreens_kbdflags="-b quiet.off"
syslogd_flags="-ss"
devfs_system_ruleset="allow_usb_mount"
ifconfig_tctap0="DHCP description 3_0_0_20000"
cloned_interfaces="tctap0"
MBStart_enable="YES"
ifconfig_igb0="DHCP"
hostname="CX-7DCC89"
- Reboot the machine using the
rebootcommand
