How to create Recipes in GUI

1. Create new Recipe

1.1.Open GUI or OPC

Warning

Every paramter register in recipes need to be in GUI (params page)

• or you can set values in OPC

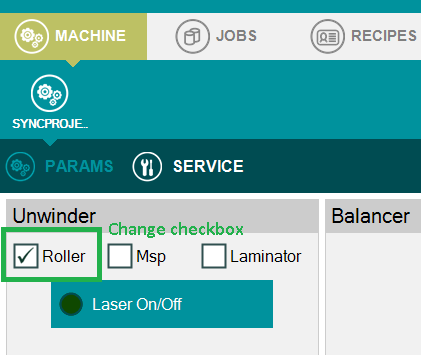

• Set your variables for recipes, what you want save to recipe

I select example variable for show you, look values.

Now you go back to GUI

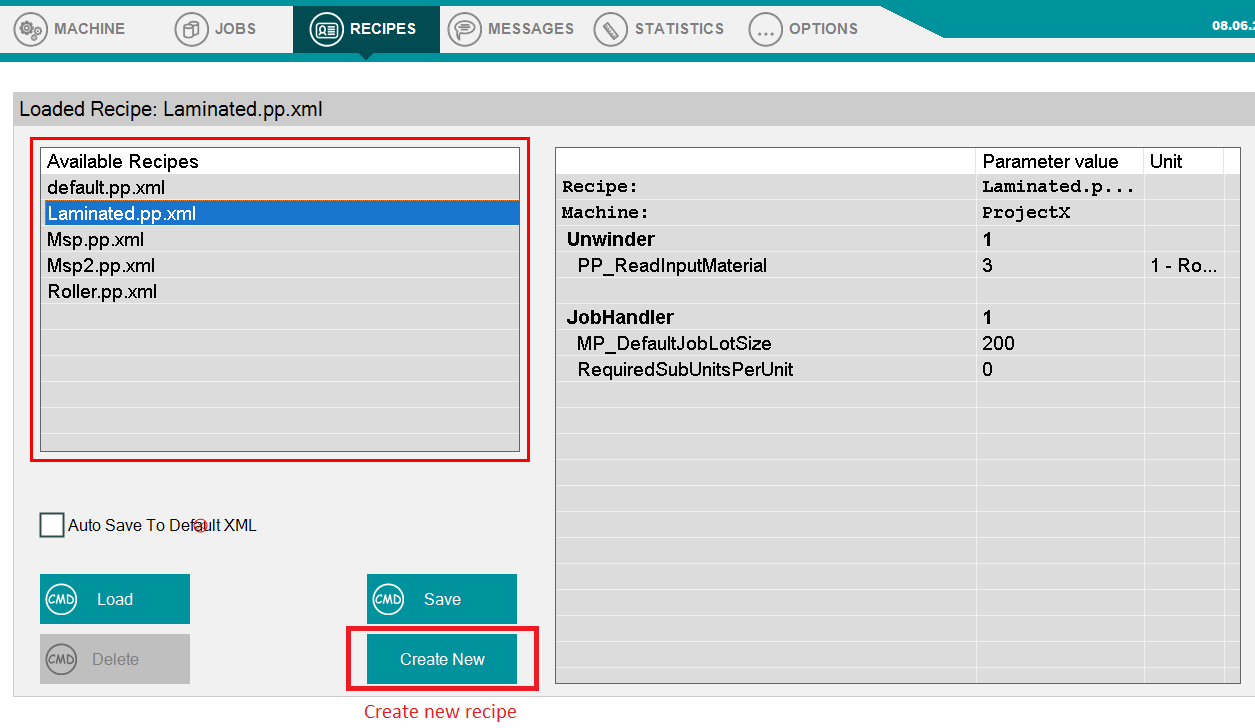

1.2. Open Gui -> Recipes

• Click "Create New"

• Give name your recipe

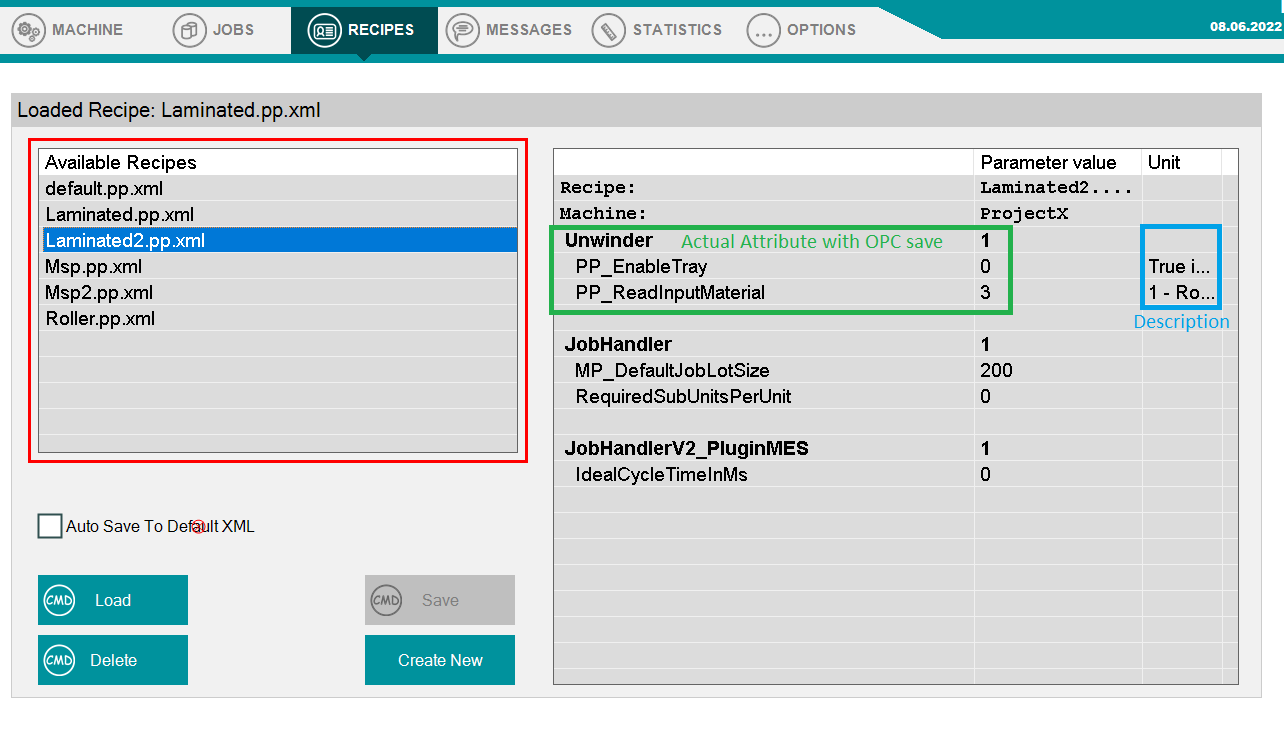

1.3. Gui -> Recipes, check variables have valus if you want

• Click "Create New"

• Give name your recipe

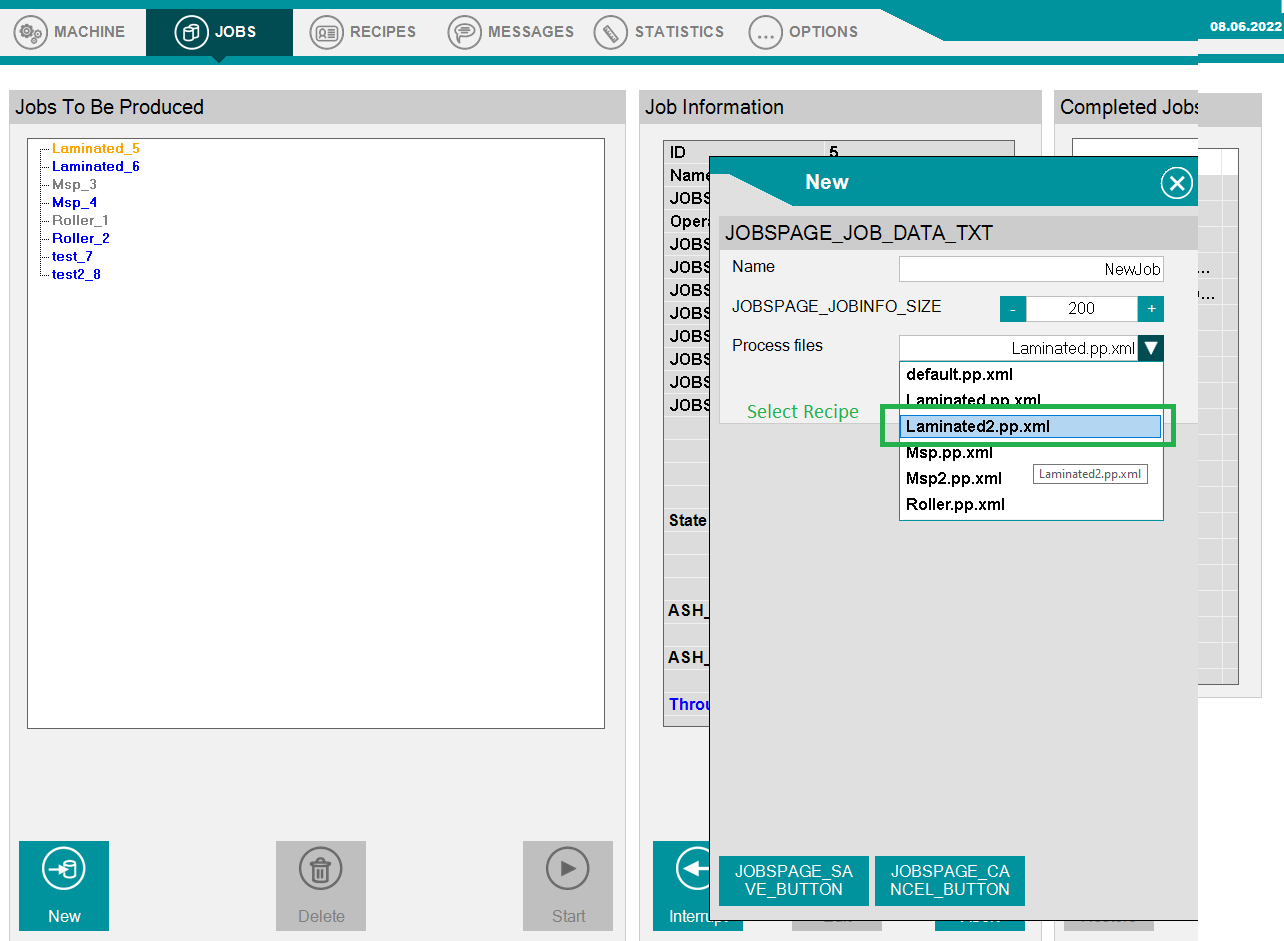

1.4. Job -> call Recipe

• Click "New"

• Select Recipes (must have *.pp.xml)

• Click Save

---

2. Change Values in Recipe

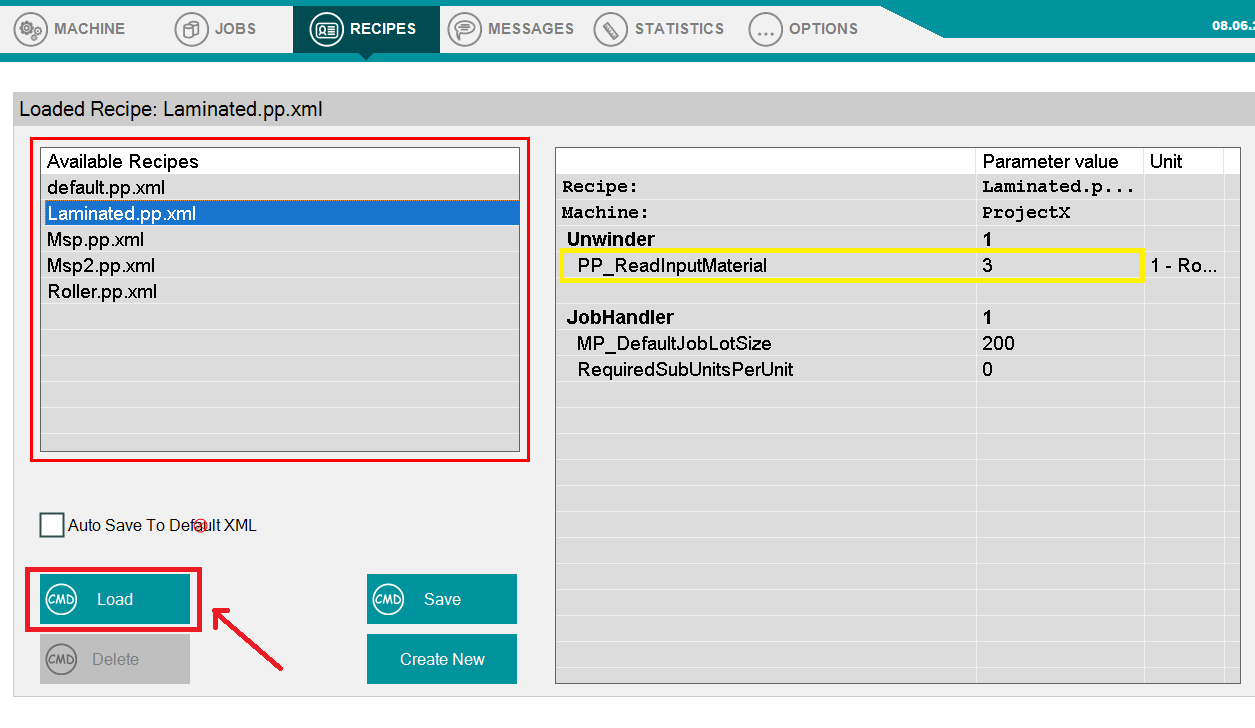

• Open GUI -> Recipes

• Select Recipe

• Click "Load"

• Set variable for Recipe

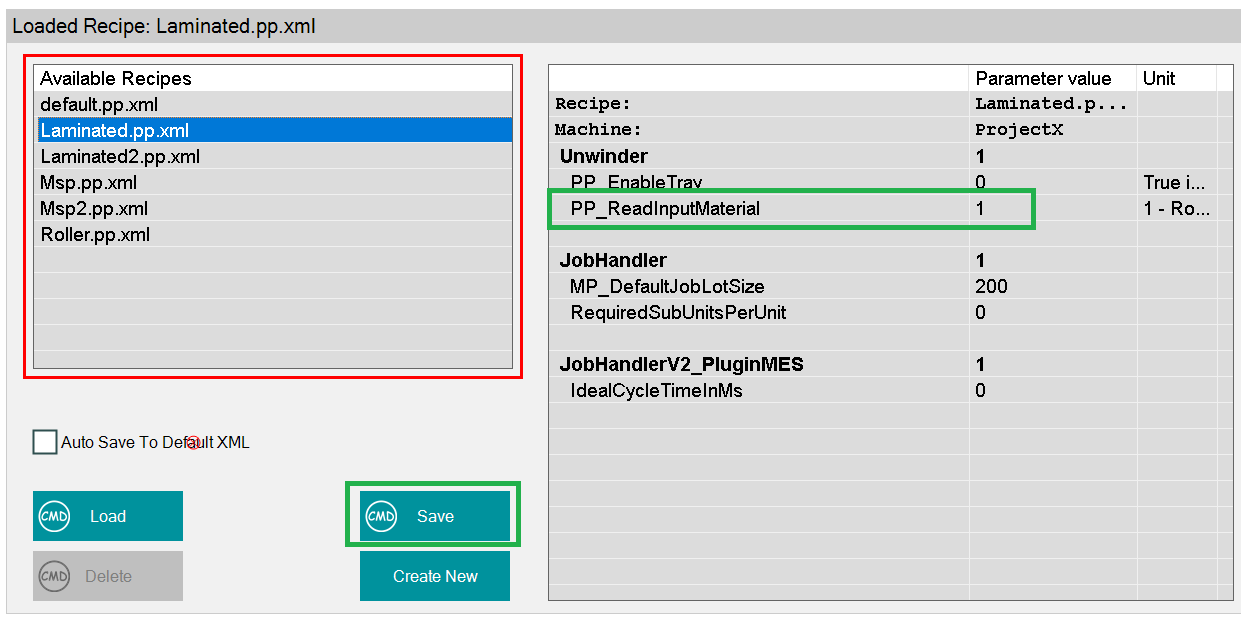

• Go to back GUI -> Recipe

• Click "Save"

• You confirm change click "Yes"

• Check Values
