How to create RegisterX
1. Create RegisterX
< NamePackPage >Impl

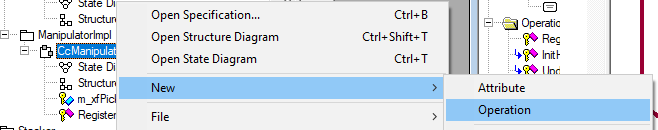

- Right click "Cc< NameCapsule >" -> "New" -> "Operation".
Look Screen.
2. Give name:
RegisterX
3. Set protected
Right click RegisterX -> Open Specification -> General: Visibility
Check Protected
4. Set return value:
Open Specification -> RegisterX -> Detail: Return type
void
5. Inherit RegisterX
Open Specification -> RegisterX -> Detail: Code
SUPER::RegisterX();
6. Add Line for xVar
Example
SUPER::RegisterX();
//|# RegisterX for Stamper (CcStamperLogic)
//################################################ Process Params ####################################################################
//|## Section: Process Params
//|### Parameter: PP_PickUp
//| Position to pick up coin
//>
m_xfPickUp.Register( *m_poXAggregation, "PP_PickUp", CrXVar::GUIW_OWNR_INIPO, 0, -10.5, -16, 80);
//<
Warning
Line is just example, for more information check XVariable
