Usage setup

1. Cc< Name >

• Right click to "Cc< Name >" -> "Open Specification"



  • Edit < Name > or < NAME > adhere to uppercase or lowercase, how you look to < Name >

  Header Preference

  #if (defined(USE_WSTYPE_< NAME >))

  Header Ending

  #endif

  RTActorId incarnateCc< Name >(Frame::Base& oFrame,RTActorRef& oRole,CdString* psName);

  bool UseCc< Name >();

  Implementation Preface

  #if (defined(USE_WSTYPE_< NAME >))

  Implementation Ending

  RTActorId incarnateCc< Name >(Frame::Base& oFrame,RTActorRef& oRole,CdString* psName){return oFrame.incarnate(oRole,Cc< Name >,psName,&RTType_CdString,0,-1);}

  bool UseCc< Name >(){return true;}

  #else

  RTActorId incarnateCc< Name >(Frame::Base& oFrame,RTActorRef& oRole,CdString* psName){CrAssertExLog(!"Incarnate of unused Cc< Name >"); return RTActorId(NULL);}

  bool UseCc< Name >(){return false;}

  #endif

---

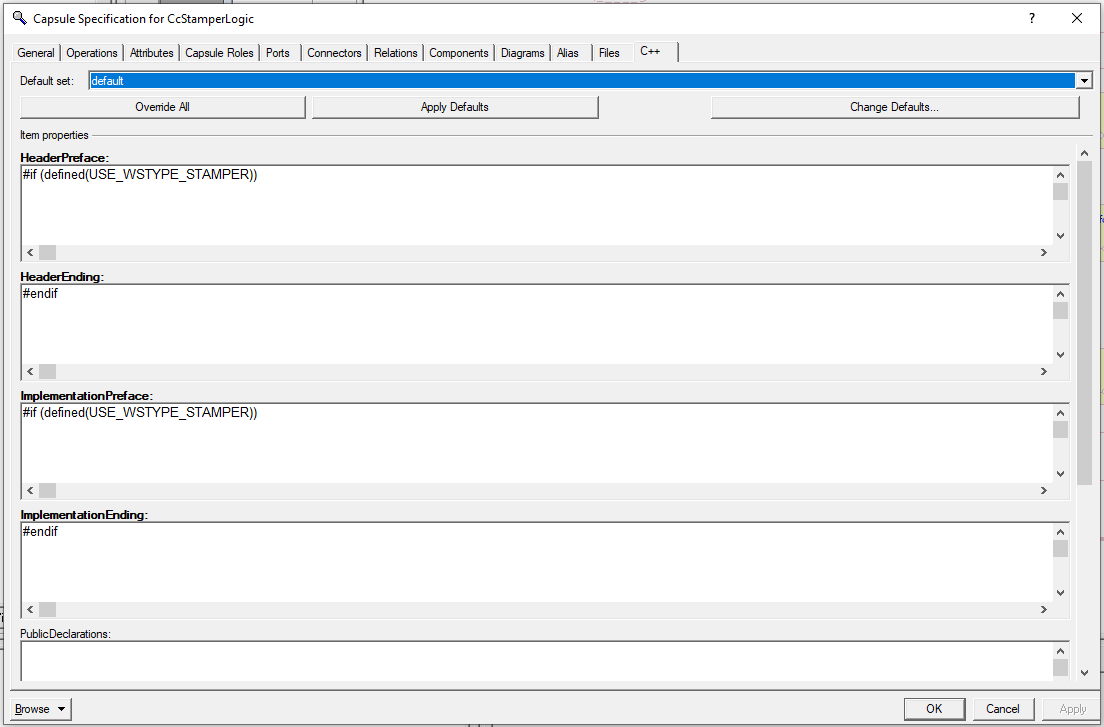

2. Cc< Name >Logic

• Right click to "Cc< Name >Logic" -> "Open Specification"



  • Edit < Name > or < NAME > adhere to uppercase or lowercase, how you look to < Name >

  Header Preference

  #if (defined(USE_WSTYPE_< NAME >))

  Header Ending

  #endif

  Implementation Preface

  #if (defined(USE_WSTYPE_< NAME >))

  Implementation Ending

  #endif

---

3. HdrScpUsage

• open path in Rose: "Model/Logical View/ScbLib/ScpHeaders" -> "HdrScpUsage"

  -> Tab "C++"

  -> Right click "Headers preface" -> "Edit in new windows"

• add USE_WSTYPE_< NAME > to USE_ALL section

Example

#if (defined(USE_ALL))

//########### MainTestMC ###############################################

#define USE_WSTYPE_MAIN_TEST_MC

#endif

• add WSTYPE_< NAME > "< Name >" (do not forget to put USE_WSTYPE_< NAME > to usage file (UsageAppl< ProjectName >.h))

Example

//############ MainTestMC ################################################

#define WSTYPE_MAIN_TEST_MC "MainTestMC"

• or you can use main USE_WSTYPE_< NAME > which must be defined in usage file and base on it define others

Example

#if (defined(USE_ALL))

//########### MainTestMC ###############################################

#define USE_WSTYPE_MAIN_TEST_MC

#endif

//############ MainTestMC ################################################

#if defined(USE_WSTYPE_MAIN_TEST_MC)

#define USE_WSTYPE_STACKER

#define USE_WSTYPE_MANIPULATOR

#define USE_WSTYPE_STAMPER

#define USE_WSTYPE_SEPARATOR

#define WSTYPE_MAIN_TEST_MC             "MainTestMC"

#define WSTYPE_STACKER                  "Stacker"

#define WSTYPE_MANIPULATOR              "Manipulator"

#define WSTYPE_STAMPER                  "Stamper"

#define WSTYPE_SEPARATOR                "Separator"

#endif

• "Apply" -> "OK"

---

4. Create Lib and connect to others libs

• open path in Rose: "Model/Component View/< TestMcComponents >/../LbMTT_CEx86"

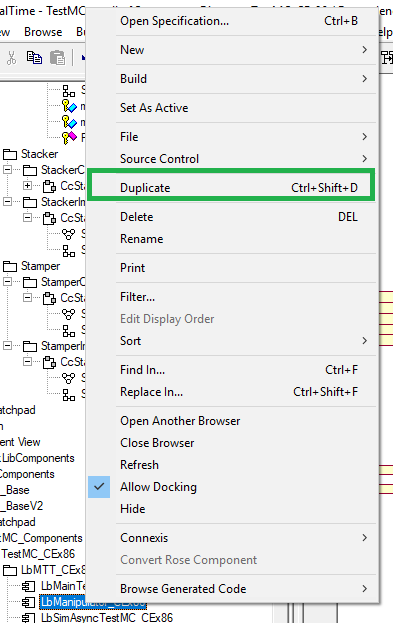

  • Here right click to lib and choose "Duplicate" or press "ctrl+shit+D"



  • rename copy lib to "Lb< Name >_CEx86"

• two clicks "Lb< Name >_CEx86"

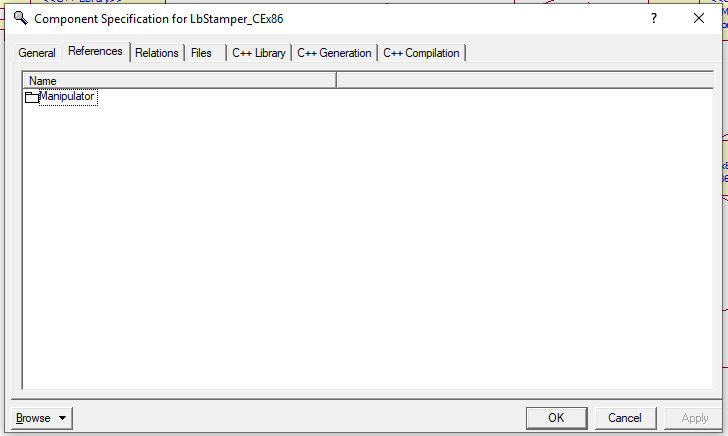

  • open tab "References " abd delete lib it's here (look picture delete "Manipulator")



  • drag and drop folder to "References"

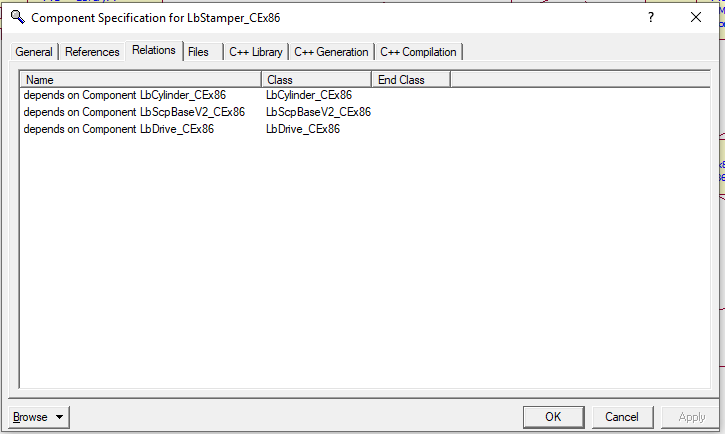

  • open tab "Relations" and delete "depends on..." which not use this lib

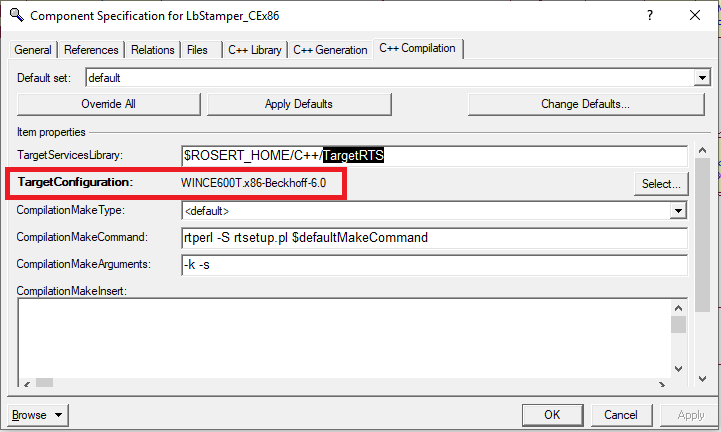

  • open tab "C++ Compilation" and check "TargetConfiguration"



  • Confirm "OK"

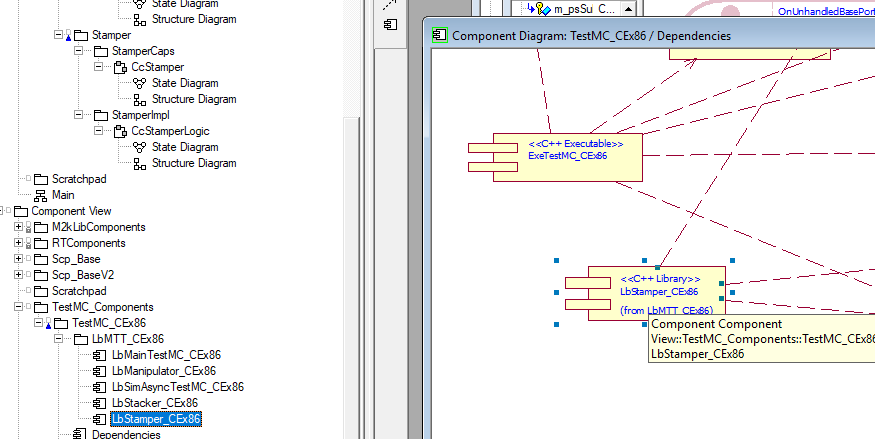

• open path in Rose: "Model/Component View/< TestMcComponents >/../" -> open "Dependecies"

  • drag and drop lib "Lb< Name >_CEx86" to window "Dependecies"

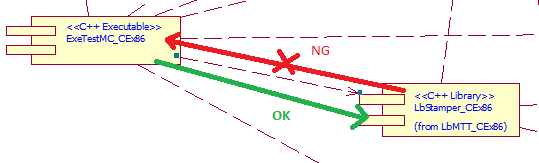

  • and give arrow "C++ Executable" to "YourLib" in that order, look picture



  Warning

  If you give arrow contrariwise

  You must open lib "Lb< Name >_CEx86" -> "Relations"

  and delete "depends... Exe..."



• Now you can Build

---

5. Add to Evaluate and Incernate

• open path in Rose: "Model/Logical View/ScpLib/ScpSystem/ScpMachineTypes/ScpMachineTypes< Name >" -> "CcScpSystem< Name >"

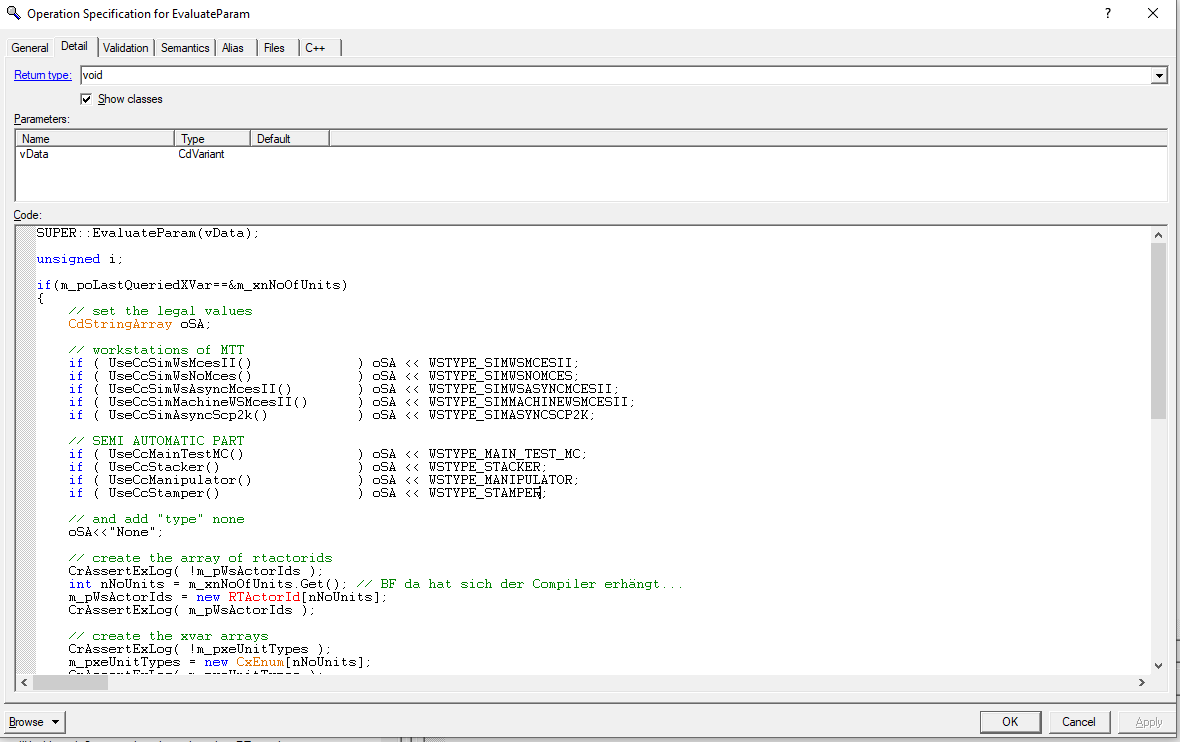

  • open "Evaluateparam"

    • Tab "Detail"

    • add new line

      Example

      if ( UseCc< Name >() ) oSA << WSTYPE_< NAME >;



    • confirm "OK"

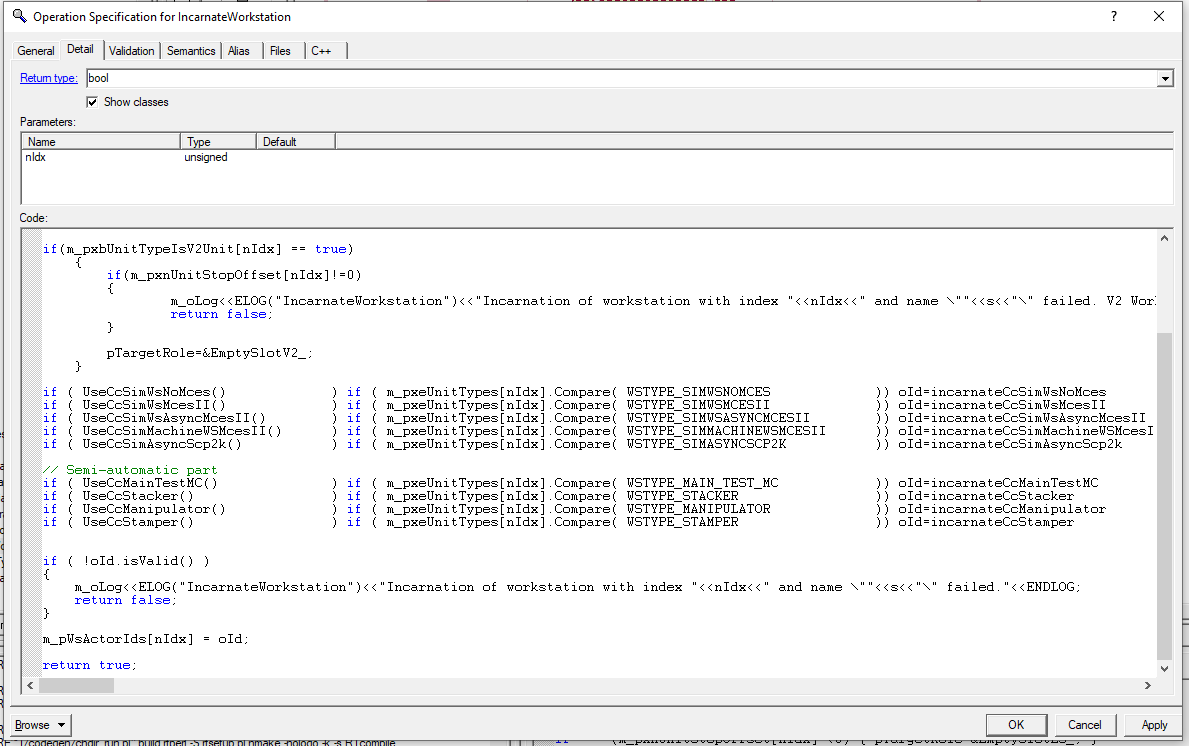

  • open "IncarnateWorkStation"

    • add new line

      Example

      if ( UseCc< Name >() ) if ( m_pxeUnitTypes[nIdx].Compare( WSTYPE_< NAME > )) oId=incarnateCc< Name > ( frame,*pTargetRole,&s );



6. Add to Dependecies

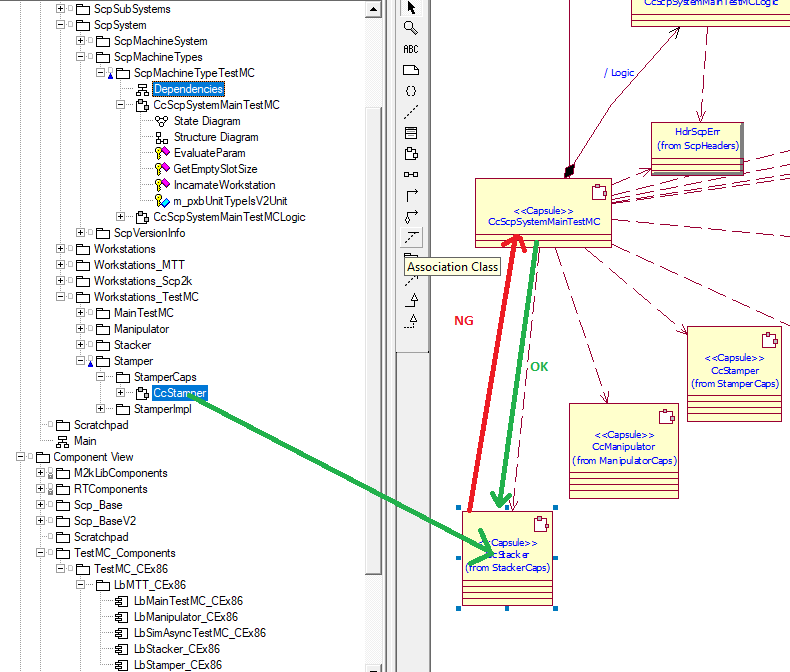

• open path in Rose: "Model/Logical View/ScpLib/ScpSystem/ScpMachineTypes/ScpMachineTypes< Name >" -> "Dependencies"

  • drag&drop "Cc< Name>"

  • and give arrow look picture

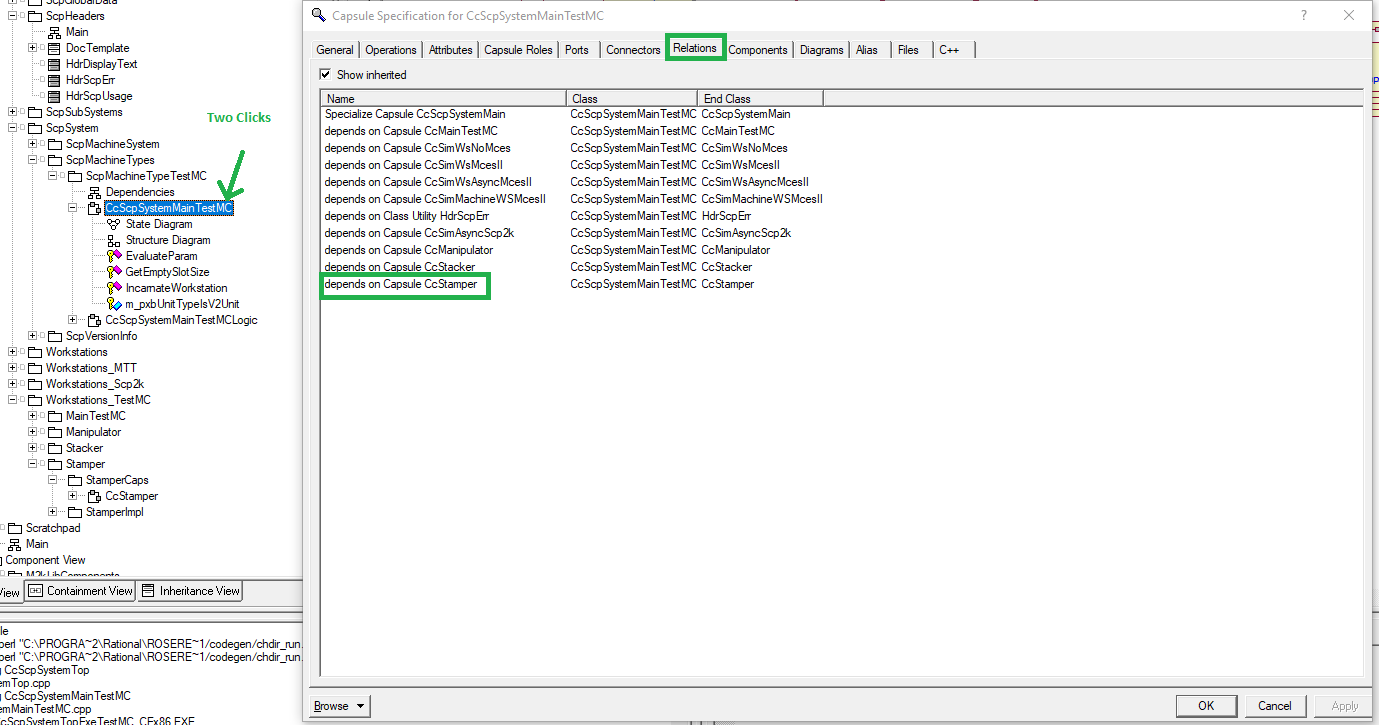

  • open path in Rose: "Model/Logical View/ScpLib/ScpSystem/ScpMachineTypes/ScpMachineTypes< Name >"

  • Two clicks "CcScpMachineTypes< Name >" -> "Relations"



  • Set Inclusion and None
