How to inherit class

1. Create Package

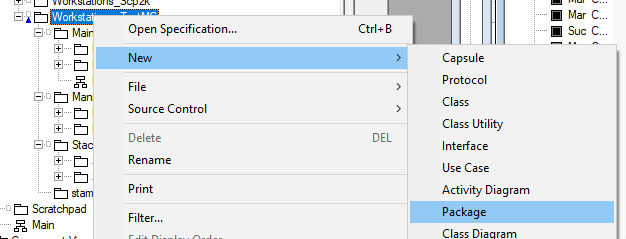

• Right click "WorkStation..." -> "New" -> "Package".



  • Give Him name "< Name >"

• Right click "< Name >" -> "New" -> "Package".

  • Give Him name "< Name >Caps"

• Right click "< Name >" -> "New" -> "Package".

  • Give Him name "< Name >Impl"

---

1.1. Control/Uncontrol Unit

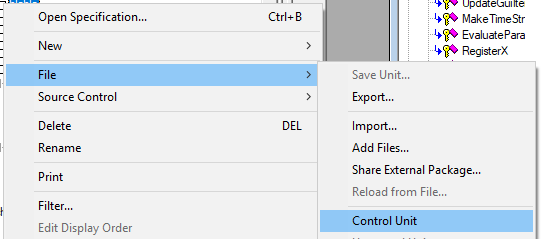

• Right click to "< Name >" -> "File" -> "Control Unit"



• Right click to "< Name >" -> File -> Control unit - create file

  • Uncontrol unit "< Name >Caps" & "< Name >Impl" - remove file - parent file will contain code of this capsule

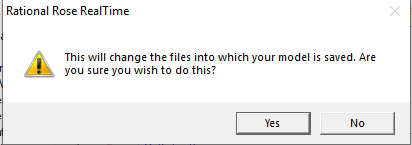

  • Confirm "No"



  • Confirm "Yes"



---

2. Create Capsule

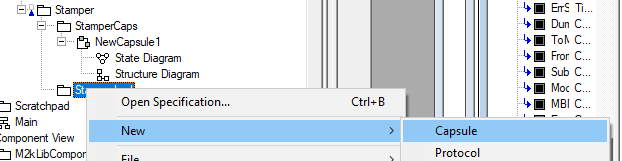

• Right click "< Name >Caps" -> "New" -> "Capsule".



  • Give Him name "Cc< Name >"

• Right click "< Name >Impl" -> "New" -> "Capsule".

  • Give Him name "Cc< Name >Logic"

---

3. Inherit class

• Right click "Cc< Name >" -> "Open Specifitaction" -> "Relations"

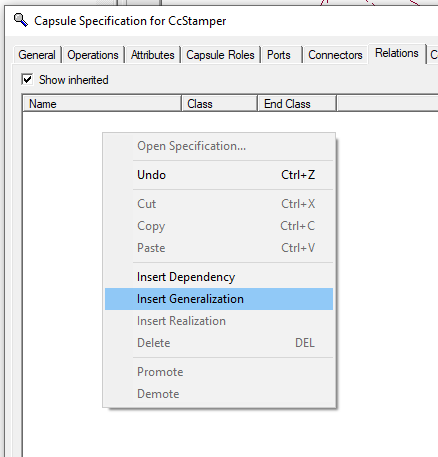

  • Right Click -> "Insert Generalizaction"

    Look for name:

    CcWsTmplV2




  • Config "OK"



  • Right Click -> "Insert Dependency" (only when no one from parents do not inherit it)

    Look for name:

    HdrScpUsage




  • Right click "Depends on Class..." -> "Open Specifitaction" -> "C++"

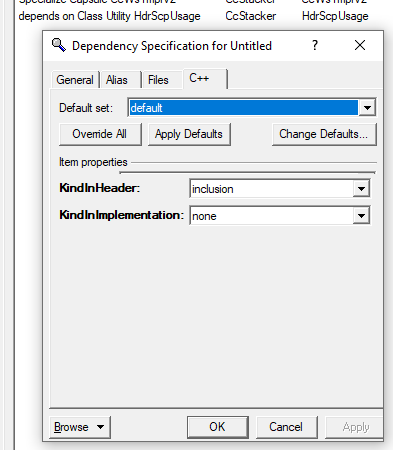

    KindInHeader: Set scrollbar to

    iclusion


    KindInImplementation: Set scrollbar to

    none

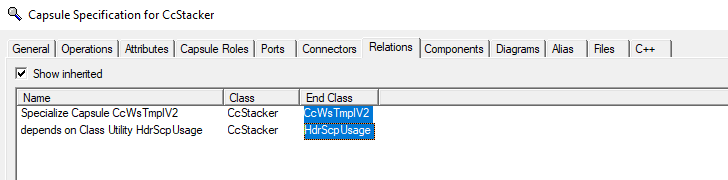

    • Look Should be



    • Confirm "OK"

  • Confirm "OK"

  • Look Should be



• Right click "Cc< Name >logic" -> "Open Specifitaction" -> "Relations"

  • Right Click -> "Insert Generalizaction"

    Look for name:

    CcWsSyncTmplV2Logic


---

4. Choose class in logic

• open "Cc< Name >" -> "Structure Diagram"

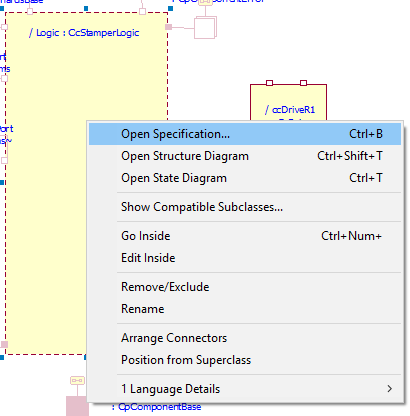

  • right click "Logic" -> "Open Specifitaction"

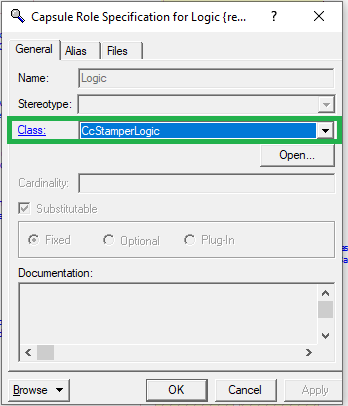

  • set class "Cc< Name >Logic"



  • confirm "OK"
